Power Test Closed Loop Cooling System (CLCS)

Test cell ready, engine coolant system that is used in place of an open-loop cooling column. Glycol systems provide corrosion and freeze protection in engines stored for extended periods or in cold environments. Stationary and Portable Closed Loop Cooling Systems are available in both Jacket Water (JW) and After Cooler (AC) models to suit your requirements.

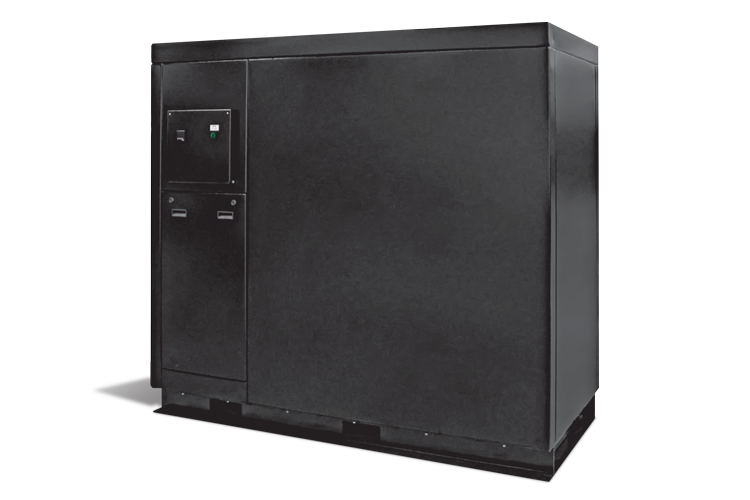

Taylor Dyno Closed Loop Cooling Centers (CLCC)

We offer a family of Closed Loop Cooling Centers (CLCC), each sized to handle the heat rejection rates of 1,250, 2,500, 4,250 and 8,000 hp (932, 1,864, 3,169 and 5,965 kW) engines. The CLCC allows you to use a glycol-based coolant to regulate an engine coolant circuit temperature while cooling the CLCC with the facility process water.

Power Test – Portable Closed Loop Cooling System Features:

• Provides temperature control & pressure regulation of engine coolant/glycol.
• Separates engine coolant from facility water.
• Integrated transfer pump to fill & drain engine coolant.
• Stainless steel heat exchanger.
• Includes a coolant level sight glass that allows visual monitoring of the engine coolant for presence of oil or exhaust gases.
• Digitally controlled analog valve allows temp. set-point range of:
  JW Models: 160-205° F (71-96° C)
  AC Model: 125-150° F (51-65° C)

• 230° F (110° C) Maximum engine coolant inlet temperature.
• Engine coolant pressure control range of 0-15 PSI (0-100 kPa).
• Includes water pressure and temperature gauges.
• Requires 30-65 PSI (200-450 kPa) min. water pressure.
• Power requirements:
  Voltage: 120/240 (VAC)
  Amperage: < 15A / 8A

Power Test – Stationary Closed Loop Cooling System Features:

• Separates engine coolant from facility water.
• Integrated (10 or 20 GPM) pneumatic transfer pump to fill & drain engine coolant.
• Utilizes a serviceable stainless steel heat exchanger.
• Provided with access panels to heat exchanger and offered with a wide variety of connection options available for installation in your facility.
• Cold water supply pump and controls are sold separately to match your precise needs. Digital controls will maintain water temperature range of:
  JW Models: 160-205° F (71-96° C)
  AC Model: 125-150° F (51-65° C)

• Auto-fill capability when used in conjunction with an optional expansion tank.
• 230° F (110° C) Maximum engine coolant inlet temperature.
• Air requirement:
  Clean, moisture-free air supply at 100 PSI (690 kPa), 20 CFM
• Power requirement:
  Voltage: 120/240 (VAC)
  Amperage: < 15A

Taylor Dyno – Closed Loop Cooling Centers (CLCC) Features:

• Available in sizes for engines rated at 1,250 hp, 2,500 hp, 4,250 hp, and 8,000 hp (932–5,965 kW)
• Uses glycol-based coolant to regulate engine coolant temperature via facility process water
• Includes a liquid-to-liquid heat exchanger and temperature sensor for control and monitoring
• Temperature set point adjustable via onboard controller or remotely through DynPro2 system (with optional cable)
• Integrated coolant pump for filling and emptying the engine before/after testing
