Throttle Controllers

Power Test Analog “Smart” Throttle Actuator

Enables precision speed control on mechanically fueled engines and helps automate engine testing.

Taylor Dyno Throttle Controllers

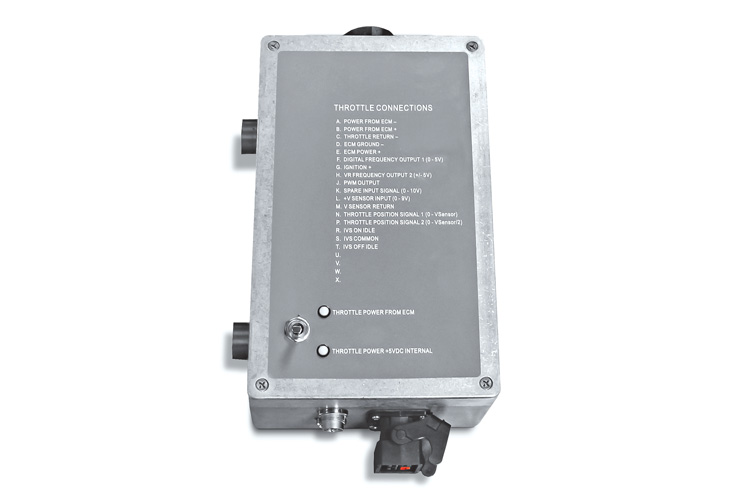

Electronic Throttle – interface connects directly to the vehicle or engine’s harness and does not interfere with the vehicle’s computers. Cable terminations or connections to the vehicle or engine’s harness are the customer’s responsibility. The interface uses a reference voltage and ground from the engine for operation. The control signal from the Data Acquisition system adjusts the throttle controller output proportionally.

Linear Servo Throttle – controlled through your computer and Data Acquisition and Control System for the more precise and repeatable mechanical throttle position requirements.

Pneumatic Throttle – controlled through your computer and Data Acquisition & Control System. Designed for the user with modest mechanical testing requirements. Generally not used when repeatable partial throttle position testing is desired.

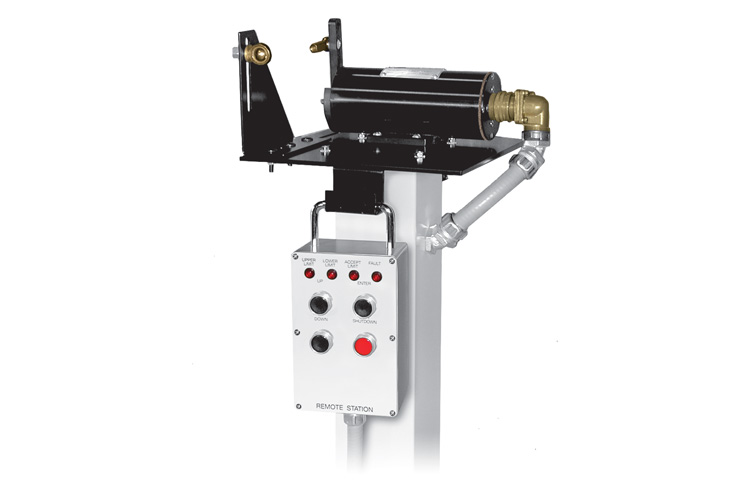

Dyne Systems Throttle Actuator Stand with Remote Pendant

The Throttle Actuator consists of a completely enclosed DC motor combined with a planetary gear reduction and optical encoder. The integral planetary gear reduction provides ample torque for actuating the most demanding mechanical throttle systems while the optical encoder provides precise position feedback for optimum control. Combined with Dyne Systems’ closed-loop throttle controls, the Throttle Actuator provides precise, repeatable control for position, speed and load modes.

Power Test Analog Throttle Actuator Features:

• Can be configured for “push” or “pull” usage
• Allows for quick adjustments and calibrations made in test cell
• Can be mounted to the dynamometer actuator support bracket or an engine cart or stand
• Is supplied with a throttle lever arm and throttle spool

Taylor Dyno Throttle Controllers Features:

• Electronic Throttle Controller
  • Connects directly to the vehicle or engine’s harness
  • Does not interfere with the vehicle’s computers
  • Interface uses a reference voltage and ground from the engine for operation
• Linear Servo Throttle
  • Controlled through your computer and data acquisition & control system
  • Includes Linear Actuator Control Cabinet and throttle cable
• Pneumatic Throttle Controllers
  • Combination Air Filter and Regulator to be adjusted to approximately 75 psig (5.2 bar)
  • Swing Arm for actuator mount to be positioned where needed
  • Actuator may be positioned by loosening bolts and sliding along T-slot swing arm; incorporates a rolling diaphragm to eliminate friction and sticking
  • 5/16 in. (8 mm) diameter steel rod ball joint end

Dyne Systems Throttle Actuator Stand with Remote Pendant Features:

• Totally enclosed gear head DC motor and optical encoder
• Actuator assembly is wash down waterproof, drip proof
• Foot mount or “C face” mounting capability
• A 5 in. (127 mm) lever arm with adjustable rod end assembly is supplied for throttle linkage connection
• All cabling is internal with an exit port at the bottom of the stand
• Remote Pendent for calibration
