Description
Power Test After Cooler Column
A temperature-controlled, pressure-regulated recirculation tank that replaces the low temperature radiator commonly found in Separate Circuit After Cooled (SCAC) turbocharged engine applications.

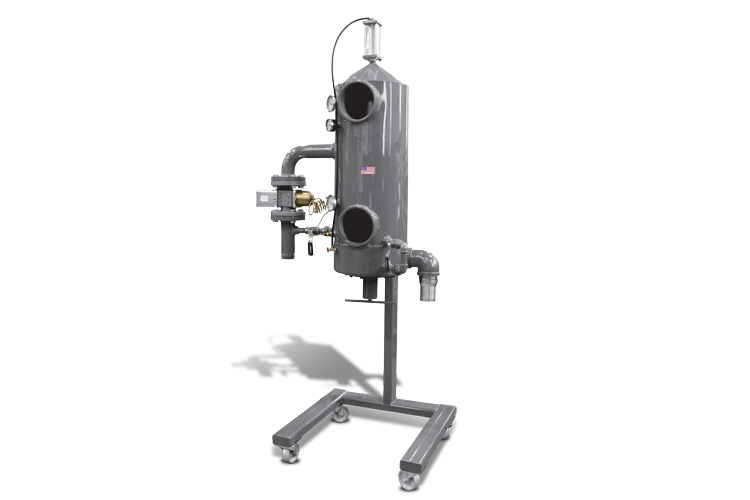

Taylor Dyno Low Temperature Aftercooler (LTA)
Our Low Temperature Aftercooler (LTA) is designed to regulate the secondary water circuit temperature on engines that use an onboard liquid-to-liquid heat exchanger (other than jacket water) to cool charge air. Analog gauges allow you to monitor temperature and pressure levels during testing.
Features
Power Test After Cooler Column Features:
- Maintains desired inlet air temperature while testing turbocharged engines
- Is adjustable from 75-135° F (167-275° C)
- Features large analog temperature and pressure gauges
Taylor Dyno Low Temperature Aftercooler (LTA) Features:
- Weight is approximately 550 lb (250 kg) with legs
- Water Use Rate is 3.5 gpm per 100 hp (19 lpm per 100 kW)
- Stainless steel internal components to prevent rust
- Available as mobile unit (with casters) or as wall-mounted unit Weight is approximately 550 lb (250 kg) with legs
- Water Use Rate is 3.5 gpm per 100 hp (19 lpm per 100 kW)
- Stainless steel internal components to prevent rust
- Available as mobile unit (with casters) or as wall-mounted unit
